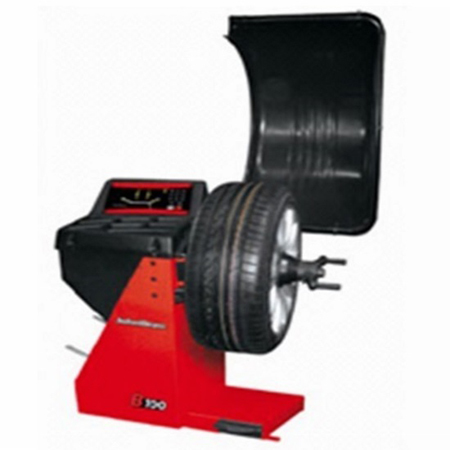

Wheel Balancing Machine

Wheel Balancing Machine
Wheel Balancing Machine
Send Inquiry
Product Code : B100
Product Description

The offered Wheel Balancing Machine is a premium quality system designed for the use in car service centers, garage, tire servicing workstations, etc. It is used to eliminate the alignment problems in wheels. The wheels of the vehicle can get out of the balance due to myriad reasons. The unbalanced wheels can badly affect the car performance and it must be sorted out as soon as possible.  Our offered Wheel Balancing Machine is an ideal equipment that detects the exact balancing error and corrects it.

Product Details:

Brand

Johnbean

Measuring Speed

100 RPM

Balancing Accuracy

1 gm

Angular resolution

0.7 Degree

Measuring time

0.45 Sec

Specifications:

Technical Specification

unit

B100

Manual Entry



Rim Diameter

Inch

8-32

Offset

Inch

1-20

Rim Width

Inch

1-20

Maximum wheel dimension



Max. Wheel Diameter

Mm

1050

Wheel width range

Mm

76-508

Max. wheel weight

Kg

70

Diameter of shaft

Mm

40

Length of shaft

Mm

225

Power supply

V/ph/Hz

230V/1ph/50 Hz

Dimension (LXWXH)

Mm

1313X868X1834

New Weight

Kg

120
